MEAT&BONE SEPARATOR
Features

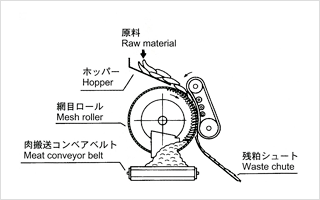

Meat&bone（fish,chicken)are separated by compressing between the perforated drum and rubber belt(R7L;rubber roller). These best selling models are applicable for various processes such aspastep-roduction and chiken meat extraction.
- ①High yield
- Efficient separation is possible due to the good infeed of our original compression system
- ②High quality
- Since the separated meat is immediately guided to the conveyor(or chute). it is not made into balls
- ③Simple to operate and easy to wash
- Effective separation can be performe by simply adjusting the compr-ession handle up or down corresponding to the raw material
- ④Easy lubrication
- An integrated lubrication system is adopted to collectively lubricate each mechanism with non-toxic oil, reducing malfuctions caused by shortage of oil.
- ⑤Perforation diameter
- ?Various perforation diameters ara available correspondingto the raw material and product (3mm～）

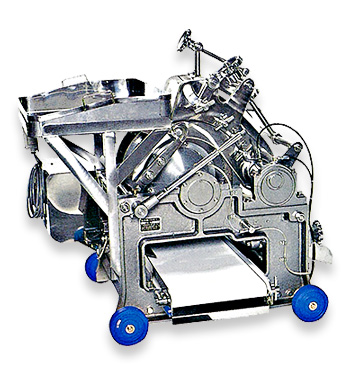

R2（All Stainless Ver.）
※If you click on each material you can confirm the image and video.
| Model | Dimensions(mm) L×W×H | Capacity(kg/hr) | Motor(kw) | Weight(Kg) |
|---|---|---|---|---|
| R2 | 1,250×1,000×1,150 |
400~500 | 2.2 | 600 |
※Processing capacity by the raw materials will be different.

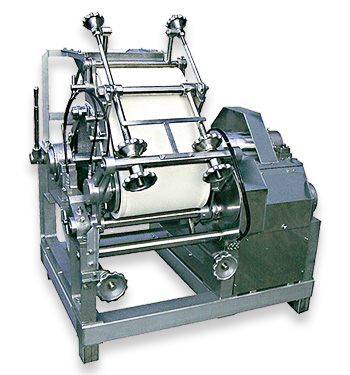

R5（All Stainless Ver.）
※If you click on each material you can confirm the image and video.
| Model | Dimensions(mm) L×W×H | Capacity(kg/hr) | Motor(kw) | Weight(Kg) |
|---|---|---|---|---|
| R5 | 1,600×1,200×1,400 |
2,000～3,000 | 3.7 | 1,300 |
※Processing capacity by the raw materials will be different.

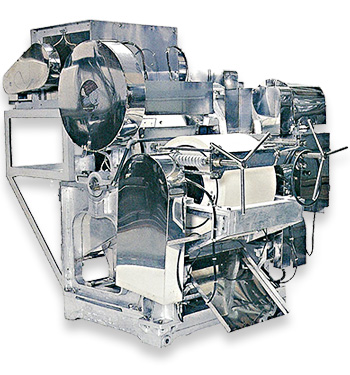

R7L
| Model | Dimensions(mm) L×W×H | Capacity(kg/hr) | Motor(kw) | Weight(Kg) |
|---|---|---|---|---|
| R7L | 2,050×1,600×2,000 |
3,000～4,000 | 9.2 | 3,100 |
※Processing capacity by the raw materials will be different.
POTATO SKIN SEPARATOR
Features

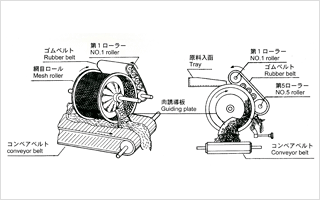

By compressing potatoes between the perforated drum and rubber belt, the potato skin is removed
- ①High yield（93～95％）
- A high yield can be obtained by separating the skinsfrom boiled potatoes while compressing, making use of the diff-erence in hardness between the flesh and skin.
- ②Good flavor
- Since the separated flesh is immediately guided to the conveyor (or chute),its original state is maintained. Furthemore,hight yield separation doesn't lose the tasty flesh just the skin.
- ③Simple to operate easy to wash
- Effective separation can be perf-ormed by simply adjusting the compression handle to the right or left corresponding to the raw material. Since relevant parts can be simply removed after use,washing can be easily performed in a short time.
- ④Material and lubrication
- As materials,stainless steel and corrosion resistant aluminum are adopted in consideration of rust prevention and sanitation. in addition, the driving mechanisms ara collectively lubricated with non-toxic oil by an integrated lubrication system, and adopted so that no oil is mixed with the flesh.
- ⑤Perforation diameter
- Various perforation diameters ara available corresponding to the raw material and product (3mm～)

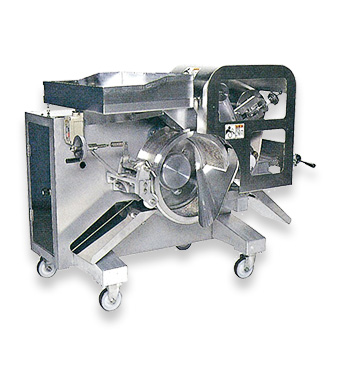

M1
- The use material
- potato
- sweet potato
- soybeans
- pumpkin
※If you click on each material you can confirm the image and video.
| Model | Dimensions(mm) L×W×H | Capacity(kg/hr) | Motor(kw) | Weight(Kg) |
|---|---|---|---|---|
| M1 | 1,150×700×950 |
300（Variable） | 0.4 | 250 |
※Raw materials is based on potatoes. It depends on the raw materials.

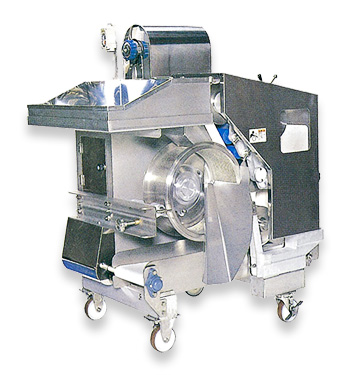

G1
- The use material
- potato
- sweet potato
- soybeans
- pumpkin
※If you click on each material you can confirm the image and video.
| Model | Dimensions(mm) L×W×H | Capacity(kg/hr) | Motor(kw) | Weight(Kg) |
|---|---|---|---|---|
| G1 | 1,250×1,200×1,350 |
700（Variable） | 0.75 | 500 |
※Raw materials is based on potatoes. It depends on the raw materials.

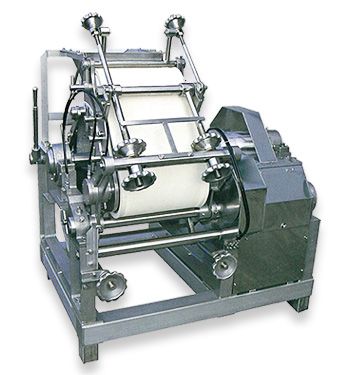

R5P（All Stainless Ver.）
- The use material
- potato
- sweet potato
- soybeans
- pumpkin
※If you click on each material you can confirm the image and video.
| Model | Dimensions(mm) L×W×H | Capacity(kg/hr) | Motor(kw) | Weight(Kg) |
|---|---|---|---|---|
| R5P | 1,850×1,200×1,400 |
2,500（Variable） | 2.2 | 1,300 |
※Raw materials is based on potatoes. It depends on the raw materials.
